Overview#

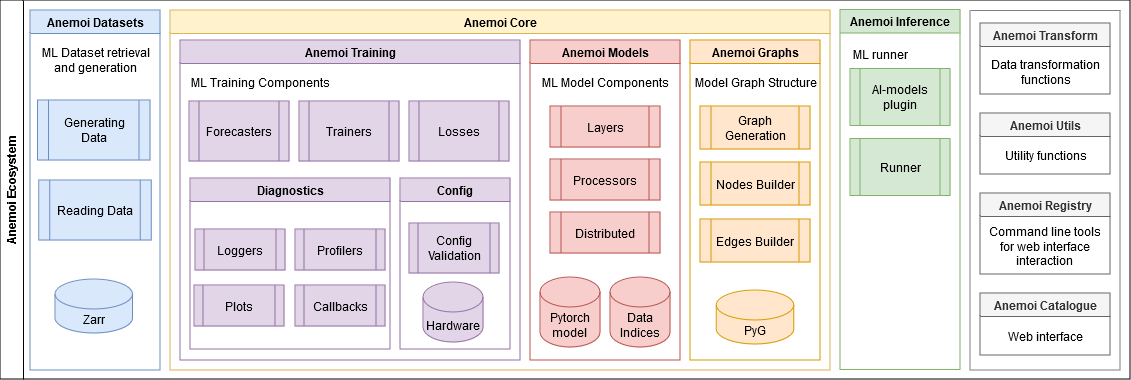

The Anemoi framework provides a complete toolkit to develop data-driven weather models through data preparation to inference. The ecosystem is composed of several packages which target the different components necessary to construct a data-driven model. Each component collects metadata that can be used by the subsequent packages. The framework rely on existing Python tools including PyTorch, Lighting, Hydra, Zarr, Xarray and earthkit.

Fallback image description

Possible uses:

  • Global deterministic forecast models

  • Regional deterministic forecast models (LAM or stretched grid)

  • Coupled atmospheric and ocean models

  • Downscaling models

  • Ensemble/probablistic models

Installing#

All the Anemoi packages are distributed on PyPI. To install an Anemoi package, you can use the following command:

pip install anemoi-{package}

where {package} is one of the below, e.g. datasets or training.

anemoi-datasets#

Anemoi-datasets provides the tools to build Zarr files from a list of sources and filters. Input format sources include MARS, Grib, netCDF, Zarr and more, while the filters allow for complex data transformation and manipulation. The output dataset is optimised for ML training with appropriate chunking and precomputed statistics for normalisation. The package also support parallel and incremental creation for large datasets.

anemoi-core#

anemoi-training#

Anemoi-training provides the code to train models, using pytorch-lightning and Hydra. The training is highly configurable via configuration files. The package also includes profiling evaluation, plotting and logging of defined model and system metrics. The model to train is also fully defined in the configuration files and utilises anemoi-models to achieve this. Additionally the dataset must be Zarr following the anemoi-datasets format.

anemoi-graphs#

Anemoi-graphs provides the functionality to create complex global or local area graphs. The graph contains nodes and edges that indicate how the grid is structured and how the input, latent and output states are connected. The graph will then be used by the model to identify the neighbouring points of each node in the encoder, processor and decoder communications.

anemoi-models#

Anemoi-models provides the implementation for various type of models. These models are based on a graph encoder-processor-decoder approach and are implemented over the pytorch library. The model contains the weights of the different layers applied to each node of a graph.

anemoi-inference#

Anemoi-inference provides the tools to take a trained model and perform the inference/rollout given some initial conditions. Inference takes full use of the metadata stored in a checkpoint, allowing for simple execution.

Other anemoi tools#

The previous packages also use some functionality implemented in other anemoi subprojects.

  • anemoi-registry: contains the functionality to save a dataset, a model or an experiment to the anemoi catalogue https://anemoi.ecmwf.int/.

  • anemoi-transform: contains data transformation functions used as filter to the datasets.

  • anemoi-utils: contains utility functions for the other subprojects.
